AAS JSON (AASJ) Exchange Package File Format Specification

1. General

1.1 Scope

This specification defines the AAS JSON (AASJ) Exchange Package Format as an alternative to the AASX format specified in IDTA-01005. The AASJ format prioritizes simplicity, debuggability, and flexible security while maintaining full compatibility with Asset Administration Shell data models.

1.2 Normative References

The following documents are referred to in the text in such a way that some or all of their content constitutes requirements of this document:

• [RFC 7515] JSON Web Signature (JWS)
• [RFC 7518] JSON Web Algorithms (JWA)
• [RFC 4648] Base64 Data Encodings
• [RFC 8259] JavaScript Object Notation (JSON)
• [FIPS 180-4] Secure Hash Standard (SHA-256)
• [IDTA-01001] Asset Administration Shell Part 1
• [ZIP] .ZIP File Format Specification (PKWARE Inc.)

1.3 Terms and Definitions

1.4 License

AAS JSON (AASJ) Exchange Package File Format Specification © 2026 by objective partner is licensed under CC BY 4.0. To view a copy of this license, visit https://creativecommons.org/licenses/by/4.0/

2. Package Structure

2.1 Archive Format

The AASJ package SHALL use the ZIP archive format as specified in the .ZIP File Format Specification.

• The file extension for the AASJ format SHALL be *.aasj
• The compression method MAY be DEFLATE, STORE, or any ZIP-supported algorithm
• The archive SHALL NOT use ZIP encryption if JWS signatures are present

2.2 File Organization

The package SHALL contain files organized in a flat structure at the root level:

The package MAY contain fully signed content (with JWS), but in that case it also MUST contain the decoded content as listed above.

2.3 Path Generation Algorithm

File paths SHALL be generated using the following algorithm:

path = type + "-" + SHA256(identifier [+ reference])

Where: - type in {shell, submodel, concept_description, binary} - identifier = Identifiable.id value - reference = idShort path or “thumbnail” (binary files only)

3. Metadata Specification

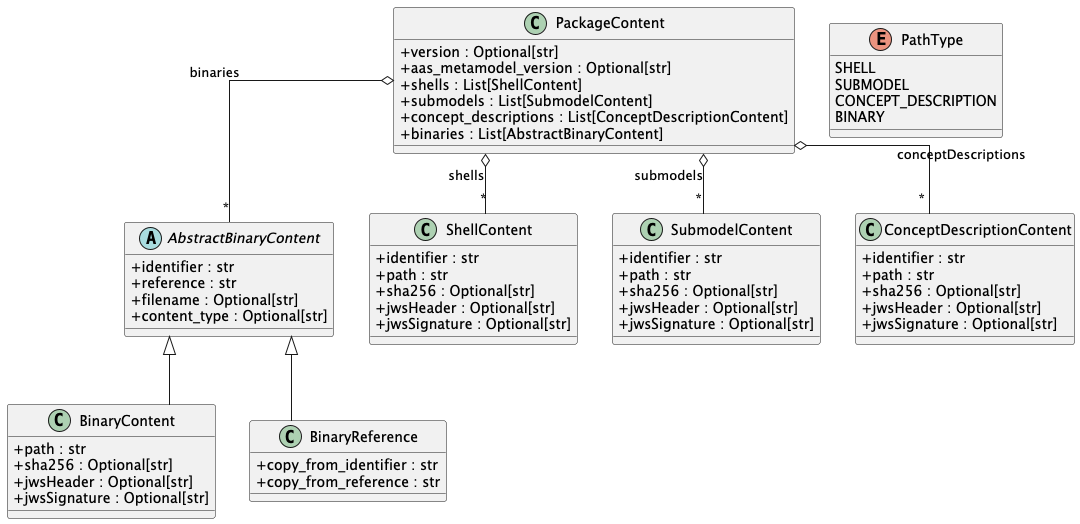

3.1 Metadata Structure

The metadata.json file SHALL contain a JSON object with the following top-level fields:

3.2 Content Object Specifications

3.2.1 ShellContent Object

*Required if jwsHeader or jwsSignature present **Ether both or neither must be present

3.2.2 SubmodelContent Object

*Required if jwsHeader or jwsSignature present **Ether both or neither must be present

3.2.3 ConceptDescriptionContent Object

*Required if jwsHeader or jwsSignature present **Ether both or neither must be present

3.2.4 BinaryContent Object

*Required if jwsHeader or jwsSignature present **Ether both or neither must be present

3.2.5 BinaryReference Object

4. Content Files

4.1 Identifiable Content Files

Files containing Identifiables (Shells, Submodels, ConceptDescriptions) SHALL:

1. Be serialized as JSON according to the AAS metamodel specification
2. Use UTF-8 encoding without BOM
3. Contain exactly one complete Identifiable element
4. NOT include referenced Binary Content inline

4.2 Binary Content Files

Binary files SHALL:

1. Be stored in their original format without modification
2. Be referenced by exactly one BinaryContent entry in metadata
3. MAY be referenced by multiple BinaryReference entries

5. Security and Integrity

5.1 Security Tiers

The package format SHALL support four security tiers:

5.2 Hash Computation

When SHA256 hashes are used:

1. The hash SHALL be computed over the raw file bytes
2. The hash SHALL be stored as lowercase hexadecimal string
3. The hash SHALL NOT include any prefix (e.g., “sha256:”)

5.3 JWS Signature Requirements

When JWS signatures are used:

1. The sha256 field MUST be present and valid
2. The jwsHeader field MUST contain a valid JWS header
3. The jwsSignature field MUST contain a valid signature
4. The signature SHALL be computed according to RFC 7515
5. The complete compact representation of “header.payload.signature” MAY be stored in a separate .jws file if jwsAttached is set to true

5.4 JWS Processing

For signed content, the following process SHALL be applied:

Export (Signing): 1. Obtain JWS with embedded payload from signing service 2. Split JWS at period delimiters: header.payload.signature 3. Store base64url-decoded payload as file content 4. Store header in jwsHeader field 5. Store signature in jwsSignature field 6. Compute and store SHA256 of decoded payload 7. Optionally include redundant .jws file and set jwsAttached to true

Import (Validation) - jwsAttached is false: 1. Verify SHA256 hash of file content 2. Base64url-encode file content to recreate payload. ATTENTION: Pure byte processing must be used to avoid byte manipulation by any string / text / JSON processing. 3. Reconstruct JWS: {jwsHeader}.{payload}.{jwsSignature} 4. Validate signature using appropriate algorithm and key

Import (Validation) - jwsAttached is true: 1. Validate signature using appropriate algorithm and key

6. Version Compatibility

6.1 Version Identification

6.2 Forward Compatibility

Version 1 readers: - SHALL ignore unknown fields in metadata.json - SHALL process content files normally - SHALL NOT validate security fields

Version 2 readers: - SHALL process Version 1 packages - SHALL apply security validation when fields present - MAY upgrade Version 1 packages to Version 2

6.3 Migration Rules

Version 1 to Version 2: 1. Set version to “2” 2. Add aasMetamodelVersion, default is “3.0” 3. Optionally compute sha256 for content 4. Optionally add filename/contentType to binaries

7. Security Considerations

7.1 Threat Model

The package format addresses these security concerns:

7.2 Security Recommendations

1. Implementations SHOULD validate content before processing
2. Untrusted packages SHOULD use Security Tier 2
3. Signing keys SHOULD be properly managed and rotated
4. Implementations SHOULD limit package and file sizes
5. Sensitive content SHOULD use additional encryption

8. Conformance

8.1 Conformance Classes

Annex A: Example Metadata

{
  "version": "2",
  "aasMetamodelVersion": "3.0",
  "shells": [
    {
      "identifier": "https://example.com/aas/123",
      "path": "shell-c51b17f0c6525f4e81843ccd438cc77f70df39113530fc87182027b400de1ac3",
      "sha256": "a1b2c3d4e5f67890a1b2c3d4e5f67890a1b2c3d4e5f67890a1b2c3d4e5f67890",
      "jwsHeader": "eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCJ9",
      "jwsSignature": "SflKxwRJSMeKKF2QT4fwpMeJf36POk",
      "jwsAttached": false
    }
  ],
  "submodels": [
    {
      "identifier": "https://example.com/sm/456",
      "path": "submodel-c1e09905a53cdcf8e2e5aa0a2335b4f9e3f3a921ca0e438d4cef8ec58c5162bc",
      "sha256": "b2c3d4e5f67890a1b2c3d4e5f67890a1b2c3d4e5f67890a1b2c3d4e5f67890a1"
    }
  ],
  "conceptDescriptions": [],
  "binaries": [
    {
      "identifier": "https://example.com/aas/123",
      "reference": "thumbnail",
      "path": "binary-a7814558759e609ab85d4ff296f7cebd2c71aae5e1fa848a25593057bbaaf830",
      "filename": "thumbnail.png",
      "contentType": "image/png",
      "sha256": "c3d4e5f67890a1b2c3d4e5f67890a1b2c3d4e5f67890a1b2c3d4e5f67890a1b2"
    },
    {
      "identifier": "https://example.com/sm/456",
      "reference": "Documents[7].DocumentVersions[0].PreviewFile",
      "path": "binary-65c4166574278e6eebf24bbb8d55aafa655f8b6a963301cfef3bccba3290d961",
      "filename": "preview.pdf",
      "contentType": "application/pdf",
      "sha256": "d4e5f67890a1b2c3d4e5f67890a1b2c3d4e5f67890a1b2c3d4e5f67890a1b2c3"
    }
  ]
}

Annex B: Path Generation Examples

Shell

• Identifier: https://example.com/aas/123
• Reference: —
• Path: shell-c51b17f0c6525f4e81843ccd438cc77f70df39113530fc87182027b400de1ac3

Submodel

• Identifier: https://example.com/sm/456
• Reference: —
• Path: submodel-c1e09905a53cdcf8e2e5aa0a2335b4f9e3f3a921ca0e438d4cef8ec58c5162bc

Binary (Thumbnail)

• Identifier: https://example.com/aas/123
• Reference: thumbnail
• Path: binary-a7814558759e609ab85d4ff296f7cebd2c71aae5e1fa848a25593057bbaaf830

Binary (Submodel Attachment)

• Identifier: https://example.com/sm/456
• Reference: Documents[7].DocumentVersions[0].PreviewFile
• Path: binary-65c4166574278e6eebf24bbb8d55aafa655f8b6a963301cfef3bccba3290d961

Annex C: Security Examples

C.1 Tier 0 - No Verification (ShellContent)

{
  "identifier": "https://example.com/aas/123",
  "path": "shell-c51b17f0c6525f4e81843ccd438cc77f70df39113530fc87182027b400de1ac3"
}

C.2 Tier 1 - SHA256 Only (ShellContent)

{
  "identifier": "https://example.com/aas/123",
  "path": "shell-c51b17f0c6525f4e81843ccd438cc77f70df39113530fc87182027b400de1ac3",
  "sha256": "a1b2c3d4e5f67890a1b2c3d4e5f67890a1b2c3d4e5f67890a1b2c3d4e5f67890"
}

C.3 Tier 2 - SHA256 + JWS (ShellContent)

{
  "identifier": "https://example.com/aas/123",
  "path": "shell-c51b17f0c6525f4e81843ccd438cc77f70df39113530fc87182027b400de1ac3",
  "sha256": "a1b2c3d4e5f67890a1b2c3d4e5f67890a1b2c3d4e5f67890a1b2c3d4e5f67890",
  "jwsHeader": "eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCJ9",
  "jwsSignature": "SflKxwRJSMeKKF2QT4fwpMeJf36POk",
  "jwsAttached": false
}

C.4 Tier 3 - SHA256 + JWS + Redundant JWS File (ShellContent)

{
  "identifier": "https://example.com/aas/123",
  "path": "shell-c51b17f0c6525f4e81843ccd438cc77f70df39113530fc87182027b400de1ac3",
  "sha256": "a1b2c3d4e5f67890a1b2c3d4e5f67890a1b2c3d4e5f67890a1b2c3d4e5f67890",
  "jwsHeader": "eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCJ9",
  "jwsSignature": "SflKxwRJSMeKKF2QT4fwpMeJf36POk",
  "jwsAttached": true
}

Implicit path for redundant JWS file: shell-c51b17f0c6525f4e81843ccd438cc77f70df39113530fc87182027b400de1ac3.jws

C.5 BinaryContent - Thumbnail

{
  "identifier": "https://example.com/aas/123",
  "reference": "thumbnail",
  "path": "binary-a7814558759e609ab85d4ff296f7cebd2c71aae5e1fa848a25593057bbaaf830",
  "filename": "thumbnail.png",
  "contentType": "image/png",
  "sha256": "c3d4e5f67890a1b2c3d4e5f67890a1b2c3d4e5f67890a1b2c3d4e5f67890a1b2"
}

C.6 BinaryContent - Submodel Attachment

{
  "identifier": "https://example.com/sm/456",
  "reference": "Documents[7].DocumentVersions[0].PreviewFile",
  "path": "binary-65c4166574278e6eebf24bbb8d55aafa655f8b6a963301cfef3bccba3290d961",
  "filename": "preview.pdf",
  "contentType": "application/pdf",
  "sha256": "d4e5f67890a1b2c3d4e5f67890a1b2c3d4e5f67890a1b2c3d4e5f67890a1b2c3"
}
